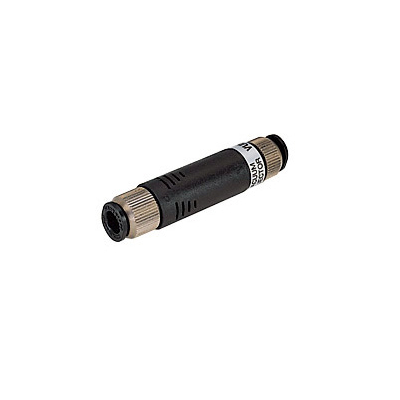

VUH Vacuum Generator Pipe type with High-vacuum performance

In stock
No reviews
RM74.10
Nozzle bore
Vacuum x Air supply port size diameter
Exhaust port
Product details
  • Vendor Unipac Store
Description Shipping information Reviews
PRODUCT FEATURES
  • In-line type, venturi vacuum generator with push-in fitting.
  • Air powered venturi vacuum can be used in combination with a vacuum pad to handle materials.
  • 3 options available
    • VU, pipe type, lightweight and compact body, made of plastic.
    • VUM, super small-sized pipe type (may be available upon request).
    • VY, comes with blow-off mechanism (may be available upon request).
  • 3 types of performance
    • H, high-vacuum type.
    • L, large-flow type (may be available upon request).
    • E, high-vacuum at low air pressure supply type (may be available upon request).
PRODUCT SPECIFICATIONS (applicable to VU and VUM models only)
  • Fluid admitted: Air
  • Maximum pressure range: 43.5~102psi (0.3~0.7MPa)
  • Rated pressure supply (for H, L performance): 72.5psi (0.5MPa)
  • Rated pressure supply (for E performance): 50.8psi (0.35MPa)
  • Service temperature range: 32~140?F (0~60?C) (No freezing)
  • For detailed specifications, please refer to catalogue (available for download).
