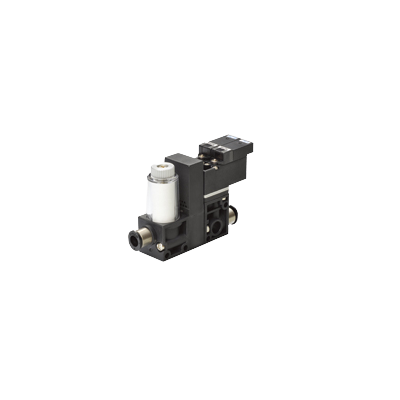

VGH Vacuum Generator High-vacuum type

PRODUCT FEATURES

Standalone, complex, multi-functional vacuum generator.
Made up by different combinations of unit, including
- Filter
- Vacuum switch
- Suction valve
- Blow-off valve

PRODUCT SPECIFICATIONS

Fluid admitted: Air, inert gas
Filtration rating: 10 micrometer
Service pressure range at 20?C: -29.5inHg (-100kPa)
For detailed specifications, please refer to catalogue (available for download).

Option	Nozzle bore	Combination of units	Vacuum x Air supply port size diameter	Valve unit voltage & Connector lead-out spec	Vacuum switch
Option 1	0.5 mm	Type A: Filter	4x4 mm	N/A	N/A
Option 2	0.5 mm	Type B: Filter/Vacuum Switch	4x4 mm	N/A	1 analog output
Option 3	0.5 mm	Type E: Filter/Suction valve/Blow-off valve	4x4 mm	24VDC/Lead out from above	N/A
Option 4	0.5 mm	Type E: Filter/Suction valve/Blow-off valve	4x4 mm	24VDC/Lead out from sideways	N/A
Option 5	0.7 mm	Type A: Filter	6x6 mm	N/A	N/A
Option 6	0.7 mm	Type B: Filter/Vacuum Switch	6x6 mm	N/A	1 analog output
Option 7	0.7 mm	Type E: Filter/Suction valve/Blow-off valve	6x6 mm	24VDC/Lead out from above	N/A
Option 8	0.7 mm	Type E: Filter/Suction valve/Blow-off valve	6x6 mm	24VDC/Lead out from sideways	N/A
Option 9	1.0 mm	Type A: Filter	6x6 mm	N/A	N/A
Option 10	1.0 mm	Type B: Filter/Vacuum Switch	6x6 mm	N/A	1 analog output
Option 11	1.0 mm	Type E: Filter/Suction valve/Blow-off valve	6x6 mm	24VDC/Lead out from above	N/A
Option 12	1.0 mm	Type E: Filter/Suction valve/Blow-off valve	6x6 mm	24VDC/Lead out from sideways	N/A
