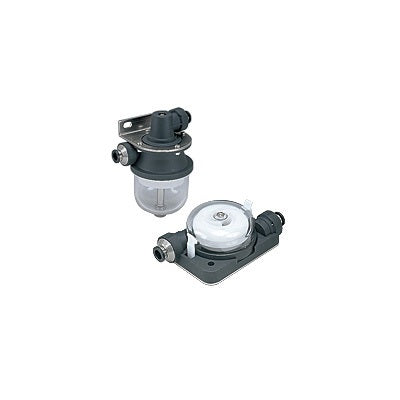

VFB/VFR Large Capacity Union Filter for Vacuum

PRODUCT FEATURES

By using the element and cyclone effect, the vacuum filter removes the dust and waterdrops sucked in by the vacuum generator.
Various options available
VFJ, plug-in type: Easy to install.
VFU, small union type: Suitable for a high-cycle vacuum operation.
VFB, large-capacity union type for vacuum circuit: Dusts are not scattered thanks to the easy detachment of dust case.
VFR, large-capacity union type for exhaustion: Large dust case reduces maintenance frequency.
VFF, pad directing-mounting type (may be available upon request).

PRODUCT SPECIFICATIONS

Fluid admitted: Vacuum
Filtration rating: 10 micrometer
Service pressure range at 20?C: -29.5inHg (-100kPa)
Service temperature range: 32~140?F (0~60?C) (No freezing)

Dimensions

	VFJ models	VFU models	VFB models	VFR models	VFF models
Filter area (cm²)	Options available from 0.8~1.1	Options available from 1.4~12.5	20	20	Options available from 1.7~7.0

Material

Parts	Standard models	Copper alloy-free models
Guide ring	Nickle-plated brass	Special stainless steel (anti-corrosive level equivalent to SUS303)
O-ring	NBR NBR	HNBR HNBR
Elastic sleeve
Lock claws	Stainless steel
Resin body	PBT
Fixing holder	POM
Filter cover	PA
Release ring	POM
