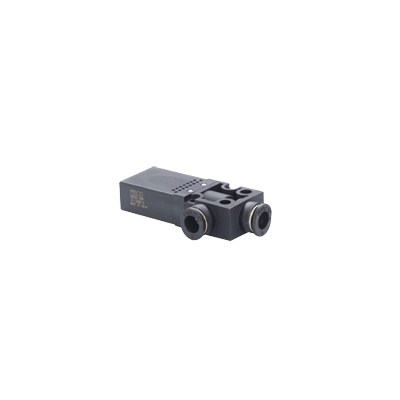

VBH Vacuum Generator Box type with High-vacuum performance
Regular price
RM82.30
Couldn't load pickup availability
Product details
- Vendor Unipac Store
PRODUCT FEATURES
- Box-shaped union type vacuum generator.
- Comes with or without mechanical vacuum switch (VUSM model).
- Lightweight, made of plastic.
- 3 types of performance
- H, high-vacuum type.
- L, large-flow type (may be available upon request).
- E, high-vacuum at low air pressure supply type (may be available upon request).
- Fluid admitted: Air
- Maximum pressure range: 21.8~102psi (0.15~0.7MPa)
- Rated pressure supply (for H, L performance): 72.5psi (0.5MPa)
- Rated pressure supply (for E performance): 50.8psi (0.35MPa)
- Service temperature range: 32~140?F (0~60?C) (No freezing)
- For detailed specifications, please refer to catalogue (available for download).
