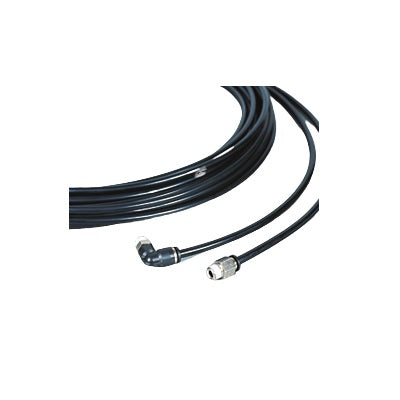

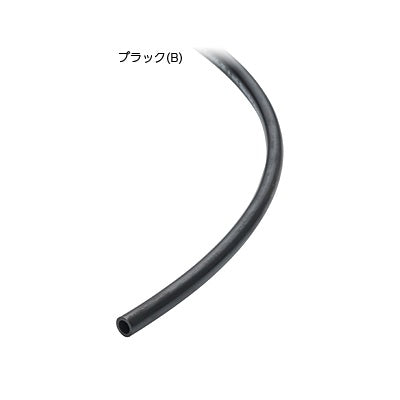

UE Antistatic Tube

In stock
Regular price RM97.70
Tube Diameter (O.DxI.D)
Tube Length
Tube Colour
Product details
  • Vendor Unipac Store
PRODUCT FEATURES
  • Best suited for manufacturing or assembly line that requires dissipation of static electricity and prevention of electrification.
  • Marking on every 500mm for easy measuring.
  • Tube softness/hardness: Soft / Somewhat soft / Somewhat hard / Hard
PRODUCT SPECIFICATIONS
  • Fluid admitted: Air
  • Maximum pressure range (at 20°C 65% RH): 87psi (0.6MPa)
  • Negative pressure range: -29.5inHg (-100kPa)
  • Service temperature range: 5~104°F (-15~40°C) (No freezing)
  • Surface resistance: 104~107Ω/sq
  Dimensions
O.D.xI.D. (mm) Minimum Bending Radius (mm) Minimum Mounting Radius (mm) Weight (g/m)
3x2.0 8 12 8
4x2.5 10 15 10
6x4.0 15
