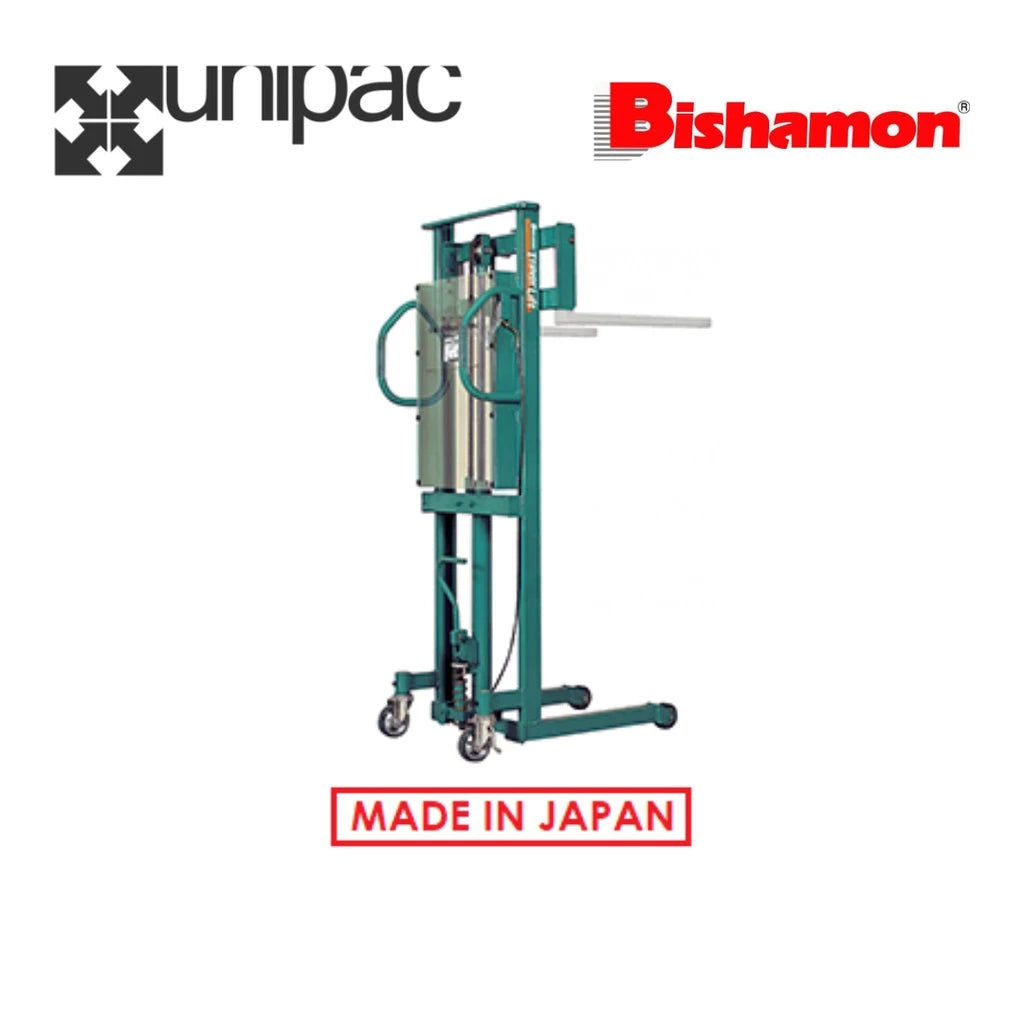

ST Hydraulic Stacker

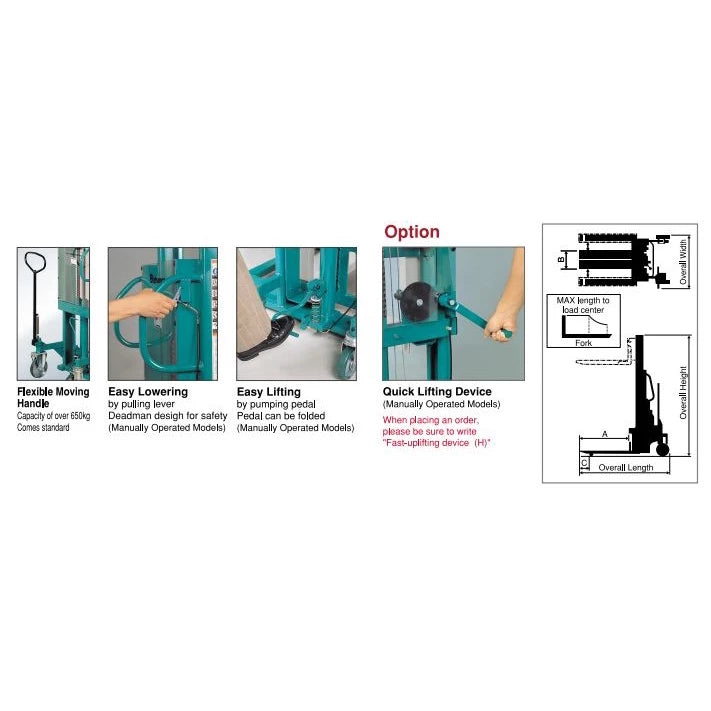

PRODUCT FEATURES \n

Flexible moving handle – Capacity of over 650kg
Easy lowering by pulling lever – Deadman design for safety
Easy lifting by pumping pedal – Pedal can be folded
Fork types:
X type
Y type
Z type
Optional features:
Quick lifting device

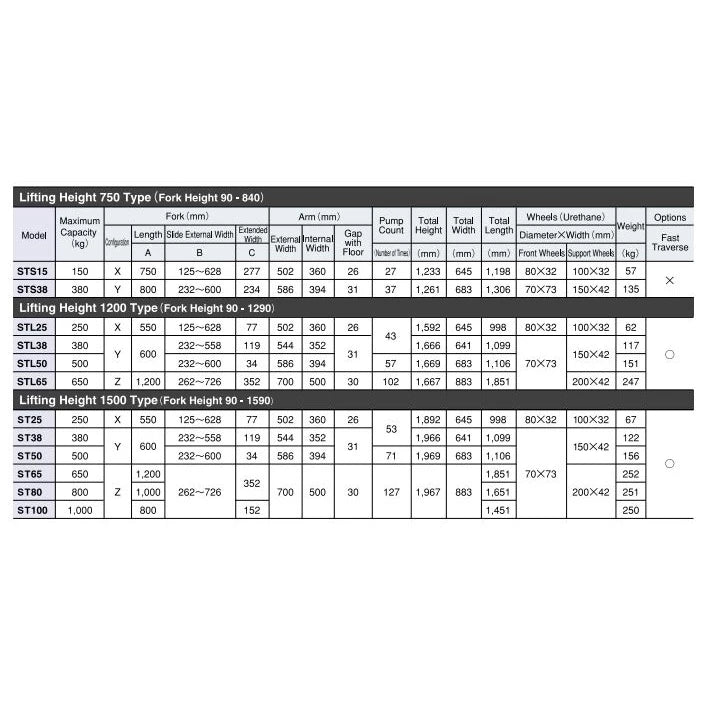

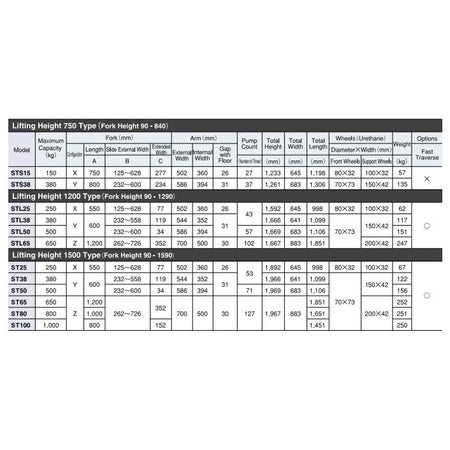

\n \n \nPRODUCT SPECIFICATIONS \n \n

\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

MODEL	MAXIMUM CAPACITY (kg)	FORK (mm)				ARM (mm)			PUMP COUNT	TOTAL HEIGHT	TOTAL WIDTH	TOTAL LENGTH	WEIGHT
		TYPE	LENGTH	SLIDE EXTERNAL WIDTH	EXTENDED WIDTH	EXTERNAL WIDTH	INTERNAL WIDTH	GAP WITH FLOOR	PUMP COUNT	TOTAL HEIGHT	TOTAL WIDTH	TOTAL LENGTH	WEIGHT
		TYPE	A	B	C	EXTERNAL WIDTH	INTERNAL WIDTH	GAP WITH FLOOR	(no. of times)	(mm)	(mm)	(mm)	(kg)
ST25	250	X	550	125 - 628	77	502	360	26	53	1,892	645	998	67
ST38	380	Y	600	232 - 558	119	544	352	31	53	1,966	641	1,099	122
ST50	500	Y	600	232 - 600	34	586	394	31	71	1,969	683	1,106	156
ST65	650	Z	1,200	262 - 726	352	700	500	30	127	1,967	883	1,851	252
ST80	800		1,000		352							1,651	251
ST100	1,000		800		152							1,451	250
