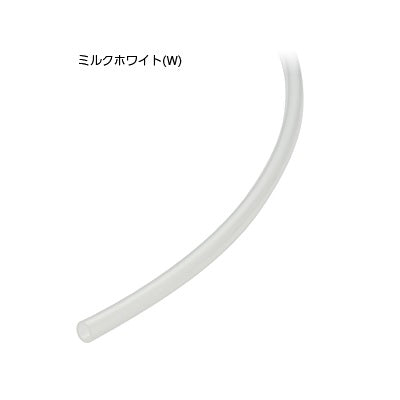

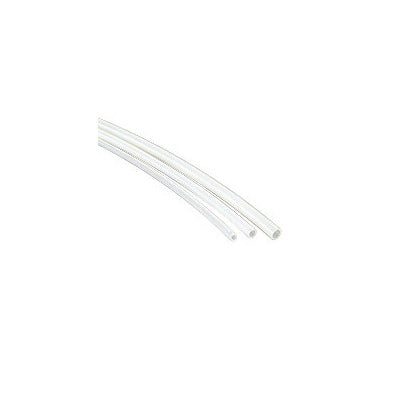

SNT Polyamide Tube

Out of stock
Regular price RM55.90
Tube Diameter (O.DxI.D)
Tube Length
Tube Colour
Product details
  • Vendor Unipac Store
PRODUCT FEATURES
  • Adheres to the Food and Additives Standard (Welfare Ministry Notice No. 370) in Japan, suitable for food processing applications.
  • Excellent resistance from turning yellow.
  • Tube softness/hardness: Soft / Somewhat soft / Somewhat hard / Hard
  • Longer length options available upon request, kindly contact us to order.
PRODUCT SPECIFICATIONS
  • Fluid admitted: Air, water (conditional), drinking water (conditional), etc. (conditional)
  • Maximum pressure range (at 20°C 65% RH): 217.6psi (1.5MPa)
  • Negative pressure range: -29.5inHg (-100kPa)
  • Service temperature range: 5~194°F (-15~90°C) (No freezing)
  Dimensions
O.D.xI.D. (mm) Minimum Bending Radius (mm) Minimum Mounting Radius (mm) Weight (g/m)
4x2.0 8 12 10
4x2.5 10 15
