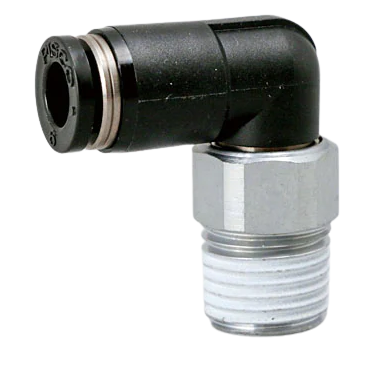

RL Tube Fitting Rotary Joint, Elbow
Regular price
RM58.00
Couldn't load pickup availability
Product details
- Vendor Unipac Store
PRODUCT FEATURES
- Push-in fitting type for general pneumatic piping, especially swivelling and rotating applications.
- Rotatable via bearing.
- Fluid admitted: Air
- Maximum pressure range: 150psi (1MPa)
- Negative pressure range: -29.5inHg (-100kPa)
- Service temperature range: 32~140°F (0~60°C) (No freezing)
| Parts | Material (Standard Type) |
| O-ring | Fluoric rubber, NBR |
| Resin body | PBT |
| Release ring | POM |
| Tube | Urethane / nylon |
| Guide ring | Nickel-plated brass |
| Lock claws | Stainless Steel |
| Elastic sleeve | NBR |
| Shaft | Stainless Steel |
| Metallic body | Chromium-plated brass |
