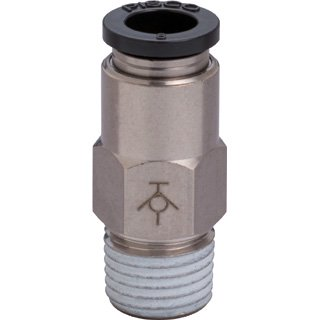

PSC Tube Fitting Stop Fitting, Straight

PRODUCT FEATURES

Push-in fitting with built-in stop valve for pneumatic piping.
The flow-shut mechanism will operate to stop the air flow when the tube is disconnected and allow air flow when the tube is connected.
Easy insertion and disconnection by double-passage structure.
Comes with a cover to prevent entry of spatter, dust, and dirt. This advantage will be complemented by the use of covered tubes.

PRODUCT SPECIFICATIONS

Fluid admitted: Air
Maximum pressure range: 130.5psi (0.9MPa)
Service temperature range: 32~140Ã‚Â°F (0~60Ã‚Â°C) (No freezing)

Ã‚Â Material

Parts	Material (Standard Type)
Resin body	PBT
Spring	Stainless steel
Elastic sleeve	NBR
Release ring	POM
Tube	Urethane / nylon
Guide ring	Nickel-plated brass
Lock claws	Stainless steel
Valve body	POM
Metallic body	Nickel-plated brass
O-ring	NBR
