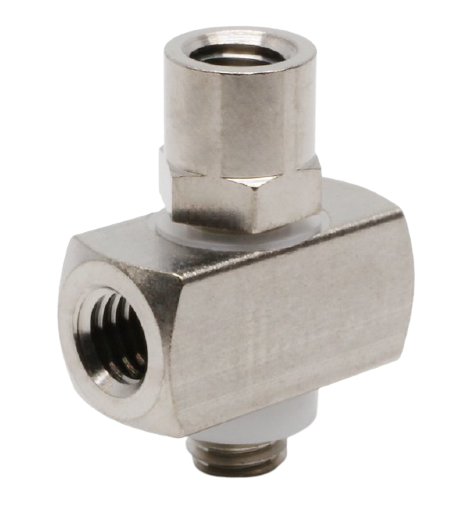

LZ Tube Fitting Minimal, Female Screw Cross
Regular price
RM9.30
Couldn't load pickup availability
Product details
- Vendor Unipac Store
PRODUCT FEATURES
ÂÂ
Material
- Ultra-small fitting for pneumatic piping comes in barb and compression types.
- Space-saving, suitable for small application.
- Suitable for vacuum piping, when combined with vacuum tube.
- For compression type, the tubing can be tightened by hand.
- For special type such as clean-room ready, kindly contact us to order.
| Barb Type | Compression Type | |
| Fluid admitted | Air | |
| Maximum pressure range | • 72psi (0.5MPa) • 43psi (0.3MPa) (with vacuum tube) | • 150psi (1.0MPa) • 43psi (0.3MPa) (with vacuum tube) |
| Working vacuum | -29.5inHg (-100kPa) | |
| Service temperature range | 32~122°F (0~50°C) (No freezing) | |
| Parts | Material (Barb Type) | Material (Compression Type) |
| Gasket | POM | |
| Metallic body | Nickel-plated brass (stainless steel / free cutting steel for M3 thread specifications) | |
| Tube | Polyurethane / nylon / vacuum | |
| Tube clamp sleeve | PFA | Nickel-plated brass |
