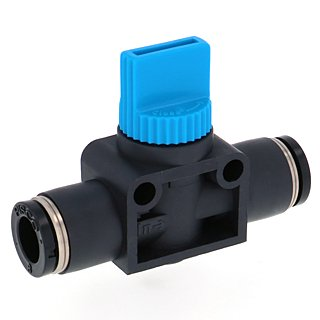

HV Hand Valve Union Straight

PRODUCT FEATURES

Shut-off valves to turn on and off air pressure to a pneumatic device or a circuit.
The 3-way, pressure relief type isolates the supplied air pressure and exhausts the downstream (connected device) pressure when turned off; suitable for maintenance purpose, and sometimes necessary for protection against device malfunction.
The 2-way type holds the downstream pressure; ideal for the application where the residual pressure maintained such as an air tank or some vacuum system.
4 options available
Straight A type.
Straight B type.
Union straight type.
Nipple type.

PRODUCT SPECIFICATIONS

Fluid admitted: Air
Maximum pressure range: 0~131psi (0~0.9MPa)
Working vacuum: -29.5inHg (-100kPa)
Service temperature range: 32~140Ã‚Â°F (0~60Ã‚Â°C) (No freezing)

Material

Parts	Material (Standard Type)
Metallic body	Nickel-plated brass
Resin body	PBT
O-ring	Nitrile rubber
Lock claws	Stainless steel
Release ring	Polyacetal
Elastic sleeve	Nitrile rubber
Spool	Nickel-plated brass
Cap knob	Polyacetal
