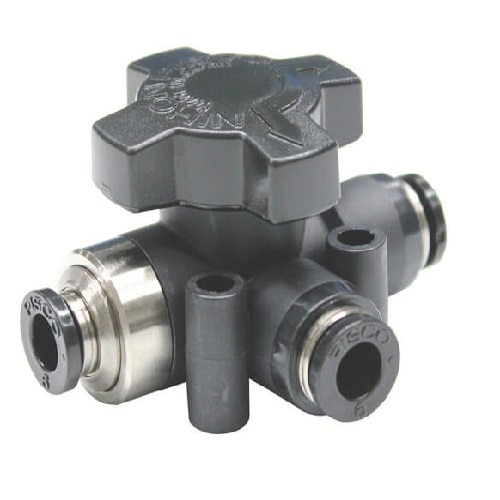

HBV Change Valve Union

Only 1 left
Regular price RM84.90
Tube Diameter (OD1)
Tube Diameter (OD2)
Product details
  • Vendor Unipac Store
PRODUCT FEATURES
  • Push-in fitting type 3-way change valve.
  • Switches air direction by 90°.
  • Made of resin, lightweight and compact.
PRODUCT SPECIFICATIONS
  • Fluid admitted: Air
  • Maximum pressure range: 0~102psi (0~0.7MPa)
  • Working vacuum: -29.5inHg (-100kPa)
  • Service temperature range: 32~140°F (0~60°C) (No freezing)
Material
Parts Material (Standard Type)
Resin body Glass-contained PBT
O-ring NBR
Lock claws Stainless steel
Release ring POM
Elastic sleeve NBR
Ball Nickel-plated brass
Guide ring Nickel-plated brass
Guide Nickel-plated brass
Knob POM
