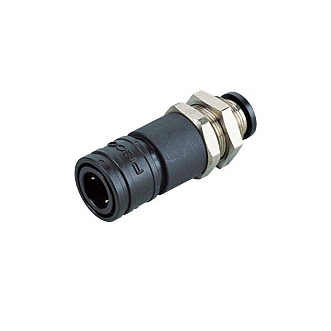

CPS15-BTS Tube Fitting Coupling, Bulkhead Tube Socket (15 Series)

In stock
No reviews
RM44.34
Tube Diameter
Colour
Product details
  • Vendor Unipac Store
Description Shipping information Reviews
PRODUCT FEATURES
  • Incorporates the push-in fitting for pneumatic piping.
  • Best suited for piping where connection and disconnection of air line is frequently conducted.
  • Comes in either socket or plug version.
  • The socket comes with a flow-shut mechanism that stops air flow simultaneously with the removal of the plug.
  • Equipped with minimal fitting resistance, it can be attached and detached with only one hand.
  • 4 options available
  • E3 Series: Suitable for frequent desorption like filling machine.
  • E7 Series: Suitable for frequent desorption like filling machine.
  • 15 Series: Lightweight, compact, and made of all-resin body.
  • 20 Series: Lightweight, compact, and made of all-resin body.
  • The lightweight and compact 20 Series Light Coupling comes in normal, silencer, and check valve types:
  • The silencer type reduces the noise and shock at the release of the residual pressure.
  • The check valve type does not allow the flow of the residual pressure.
  • Connectable to Main Block / Manifold series
PRODUCT SPECIFICATIONS
  • Fluid admitted: Air, water (conditional, for E3 and E7 Series only)
  • Maximum pressure range: 130.5psi (0.9MPa)
  • Negative pressure range: -29.5inHg (-100kPa)
  • Service temperature range: 32~140°F (0~60°C) (No freezing)
Dimensions
20 Series models 15 Series models E7 Series models E3 Series models
Effective sectional area (mm2) 20 15 7 3
