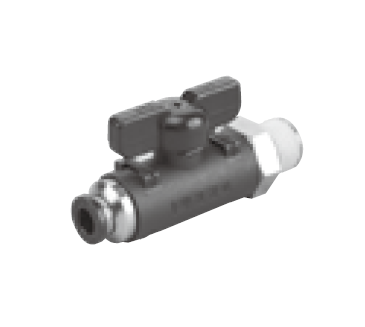

BVC Ball Valve Straight

In stock
Regular price RM61.70
Effective Area
Tube Diameter
Thread Size
Product details
  • Vendor Unipac Store
PRODUCT FEATURES
  • Turns on and off the air pressure to pneumatic equipment.
  • It provides effective cross-sectional area appropriate to the tube size.
  • The flow rate can be adjusted easily by setting the angle of the lever that comes with a scale.
  • For 20 and 60 Series, water can pass through the resin body that is made of PPS.
PRODUCT SPECIFICATIONS Specifications
10 Series 20 Series, 60 Series
Fluid admitted Air Air, water (conditional)
Maximum pressure range (psi; MPa) 0~102; 0~0.7 0~130; 0~0.9
Working vacuum -29.5inHg (-100kPa)
Service temperature range 32~140°F (0~60°C) (No freezing)
  Dimensions
10 Series 20 Series 60 Series
Effective cross-sectional area (mm2; Cv) 10; 0.542 20; 1.084 60; 3.252
  Material
Parts 10 Series 20 Series, 60 Series
Machine screw Steel
Knob Polyacetal
Stem Nickle-plated brass
Lock pin Stainless steel
Elastic sleeve Nitrile rubber
Lock claw Stainless steel
Release ring Polyacetal
Metallic joint body Nickle-plated brass
O-ring Nitrile rubber
Ball holder Nickle-plated brass
Ball Nickle-plated brass
Ball seal Teflon
Ball holder Nickle-plated brass
Resin body PBT PPS
