AMH 8000 4SD IR Curing System
Couldn't load pickup availability
- Vendor Unipac Store
- Product brochure Download

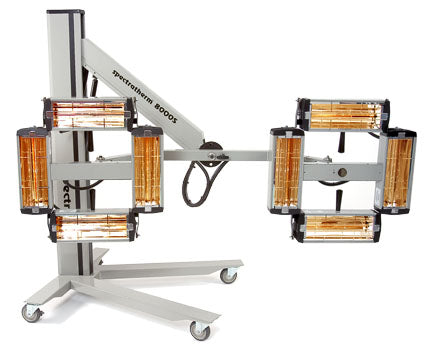

Double Head & Digital Infrared Curing Lamp
8x 1,000 watt infrared short wave lamps on 2 independently adjustable heads provide the maximum 3,081 sq. in.(2m²)cure area. Cure area is uniform and focused with no hot or cold spots. Each array of 4 lamps may be adjusted to conform to the contour of the panel.
Thermal Integrated Sensor System (TISS) allows for fast set up and automatic regulation: Distance sensor emits audible tone for setting the proper distance from the panel. Heat sensor automatically adjusts the temperature throughout the curing process.
Cures on any substrate. Cures primer in 3 to 8 minutes, water based filler in 7 to 9 minutes.
Modulated ramp-up time for maximum control and heat transfer.
Temperature on the painted surface:
The temperature varies from 20°C to 90°C with 1,000W light bulb.
The temperature varies from 30°C to 200°C with 2,000W light bulb.
Easy digital control.
Auto Timed Shut-Off: Reduces chance of damage to finish due to overheating.
Heavy duty stand with movable arm and a locking caster allows the lamp head to be positioned to panels from the rocker to the vehicle roof. (Note: Appropriate 220 volt plug must be installed by user.)
